[TECH-TRACE]

Self-Regulating Heating Cable

  SRL-10-2
SRL-15-2
SRL-16-2
SRL-24-2
SRL-30-2
CE
CE
CE.UL
CE.UL
CE.UL
10 W/M @ 10
15 W/M @ 10
16 W/M @ 10
24 W/M @ 10
30 W/M @ 10
Electrical freeze protection
for ordinary area.
& Freeze protection system.

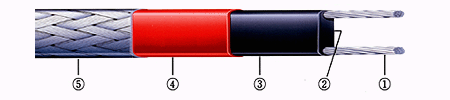

Product Construction



  1. Copper bus wire (16AWG)
  2. Self-regulating semi-conductive core
  3. Inner adhesive jacket
  4. Polyolefin outer jacket
  5. Optional tinned copper braid & Overjacket


Application

  - Freeze protection (pipes, tanks, vessels)
- Cooling tower lines
- Fire stand pipes
- Drain pipes
- Temporary construction piping
- Plastic pipes


Product Ratings

  Catalog number

Thermal rating at 10

Service voltage

Maximum maintenance temperature

Maximum exposure temperature

Maximum circuit length
SRL-10-2

10W/M

220VAC

65

85

150M
SRL-16-2

16W/M

220VAC

65

85

150M
SRL-30-2

30W/M

220VAC

65

85

80M

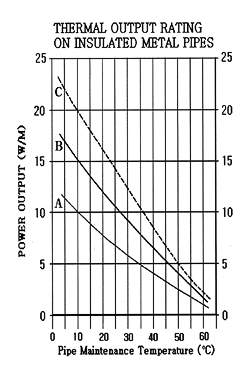

Thermal Output Ratings



  1. Self Regulating Heater SRL-10-2
  2. Self Regulating Heater SRL-16-2
  3. Self Regulating Heater SRL-24-2
